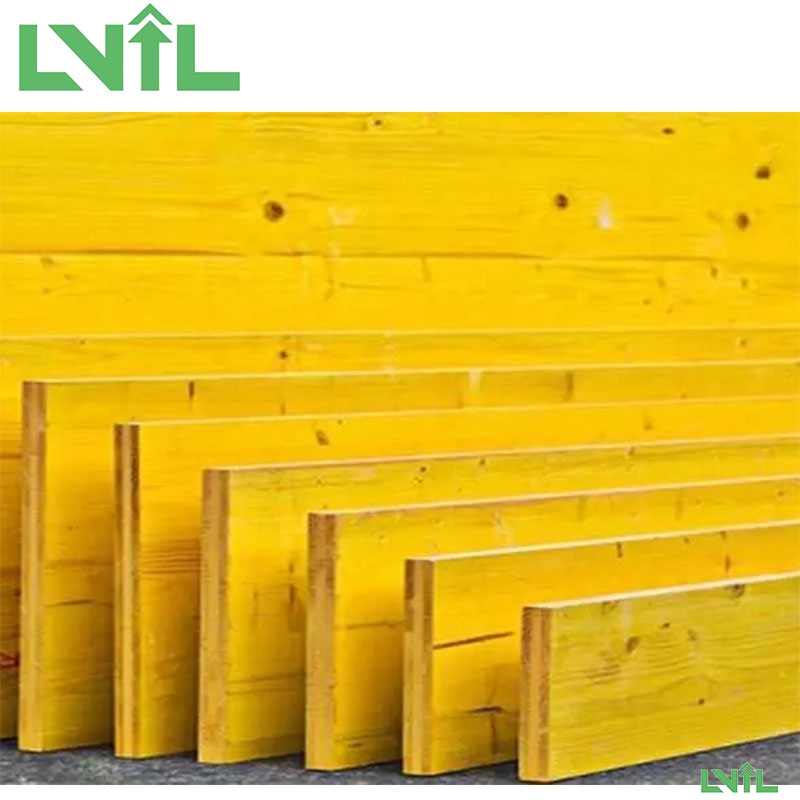

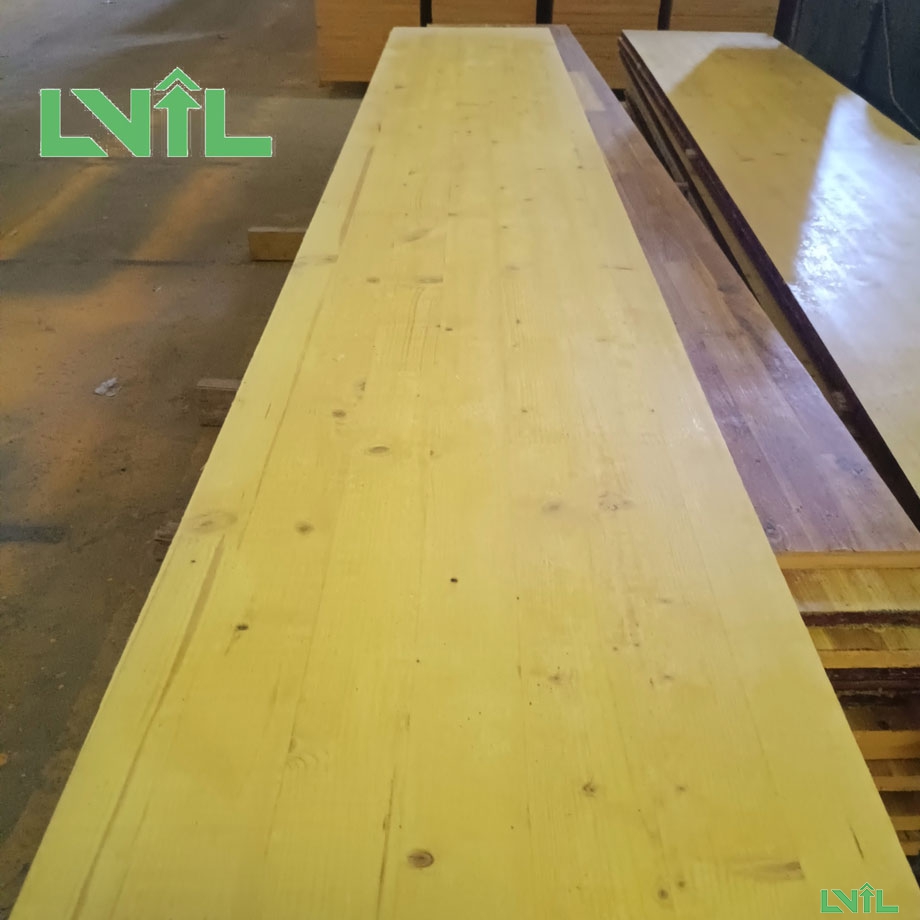

product name | formwork 3-ply panels |

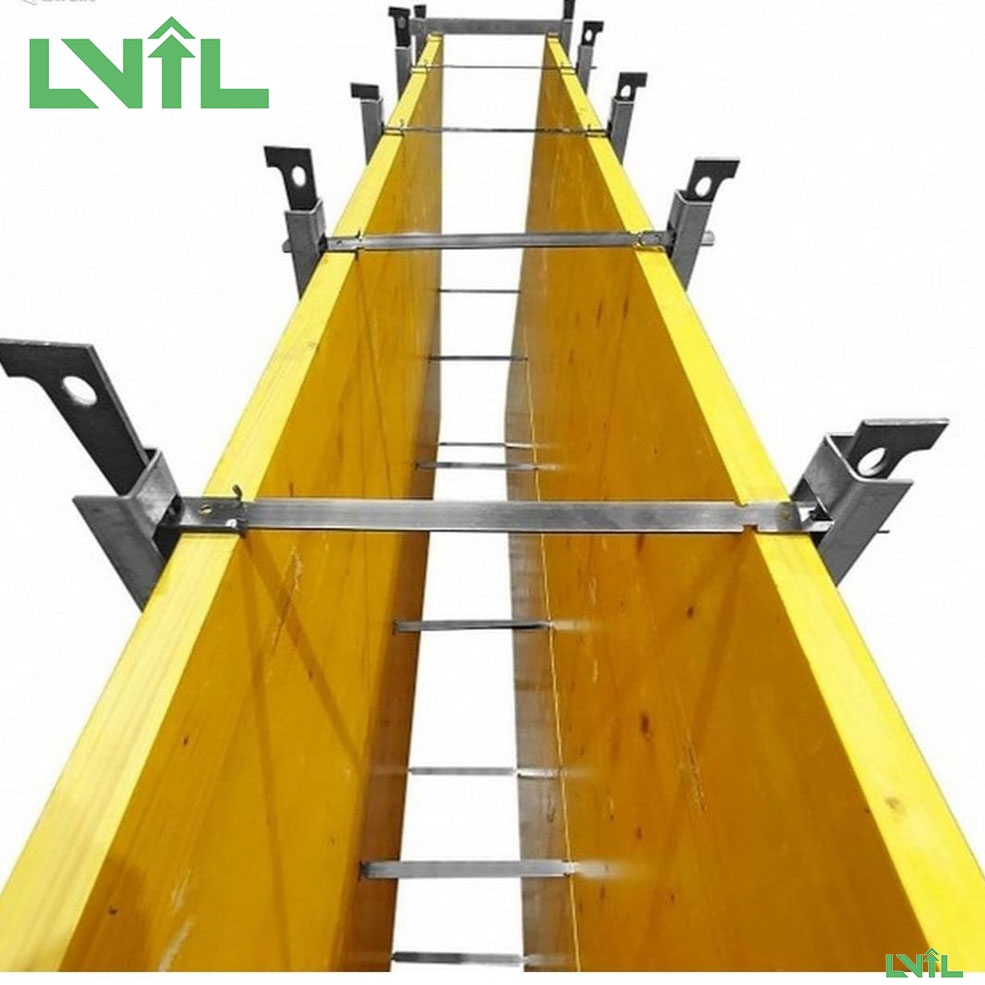

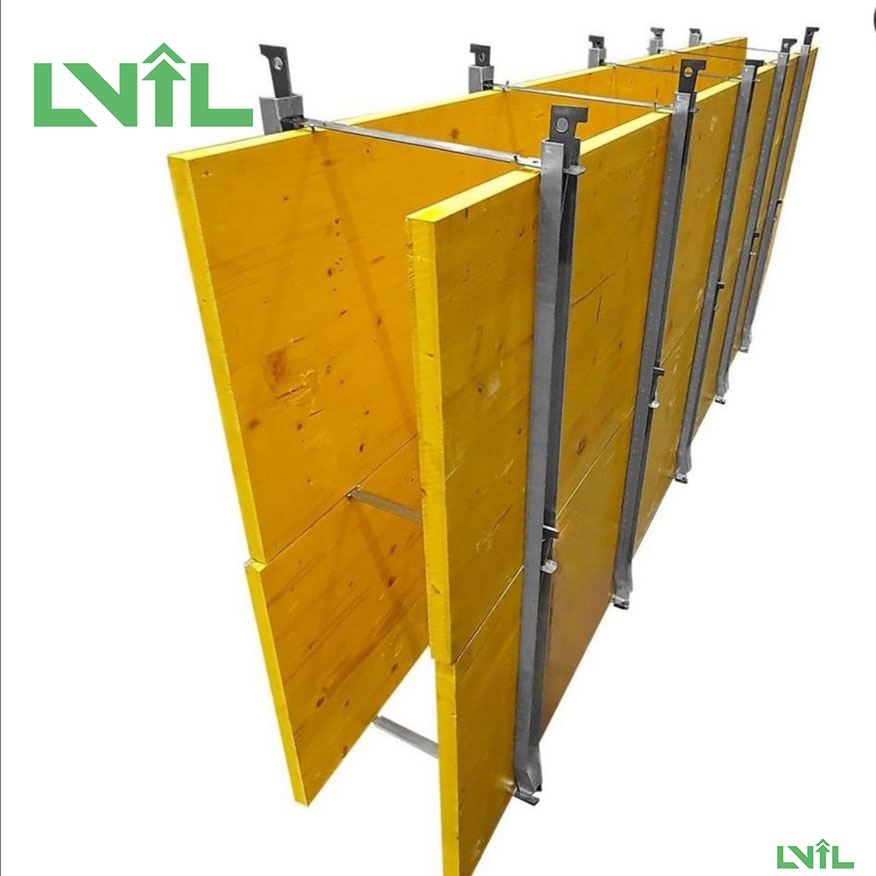

Application | construction,concrete formwork |
sizes | length:1000-3000mm, width:500/1000mm,thickness:21/27mm |
density | 470-490kgs/cbm |
Brand Name | LVIL |
Glue | phenolic,melamine |
Material | spruce,fir,pine |
Weight | 21 mm = 9.45 kg/m2, 27mm=12.15 kg/m2 |
Color | Yellow |
Bending Resistance EN 789 | 35MPA |
MOQ | 1*20HQ |
Package | 21mm 108pcs/pallet; 27mm 84pcs/pallet |
Specifications:

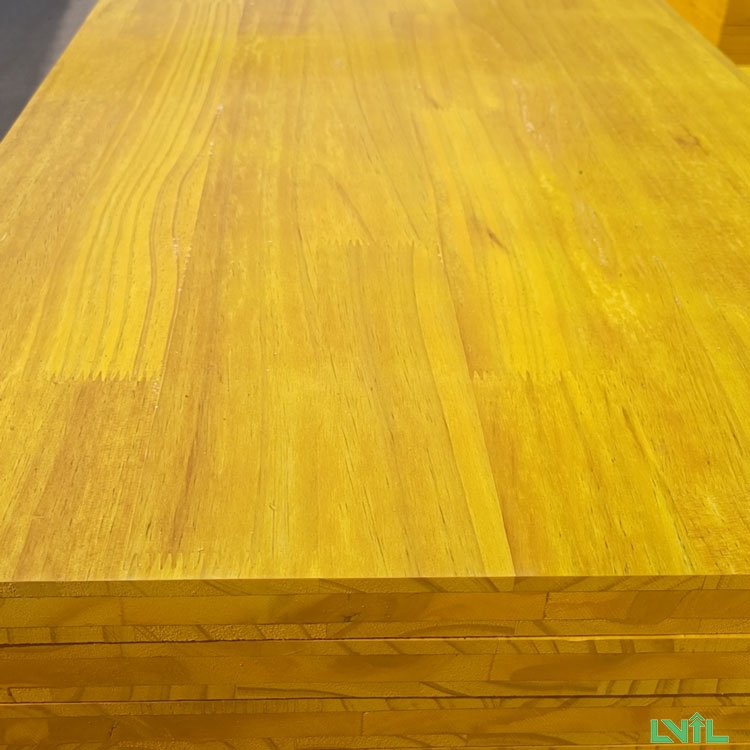

1.Wood type: spruce and red fir
2.Wood humidity: 12% +/-2%
3.Protection surface: highly resistant melamine resin coating
4.Many uses possible (up to 12-15 on each side)
5.weight:21 mm = 9.45 kg/m2; 27 mm = 12.15 kg/m2;
6.Great dimensional stability and high weight loading capacity
We can customize our panels with the following options:
Name printed on the top face of each panel - standard will be with day and hour of production for perfect production tracking;

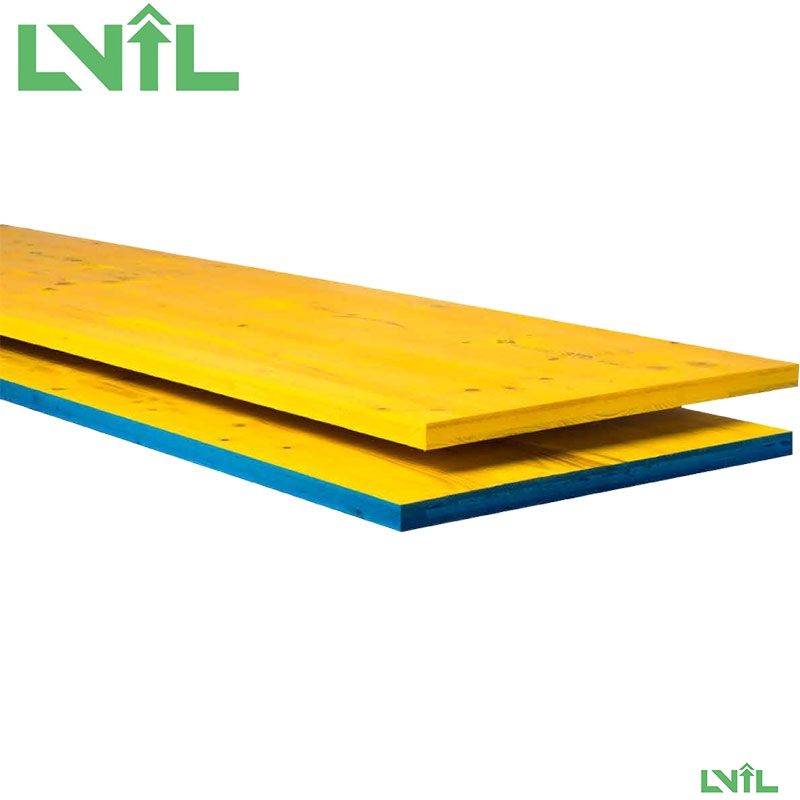

Name / logo printed on each bundleSelection of colors for the edges.

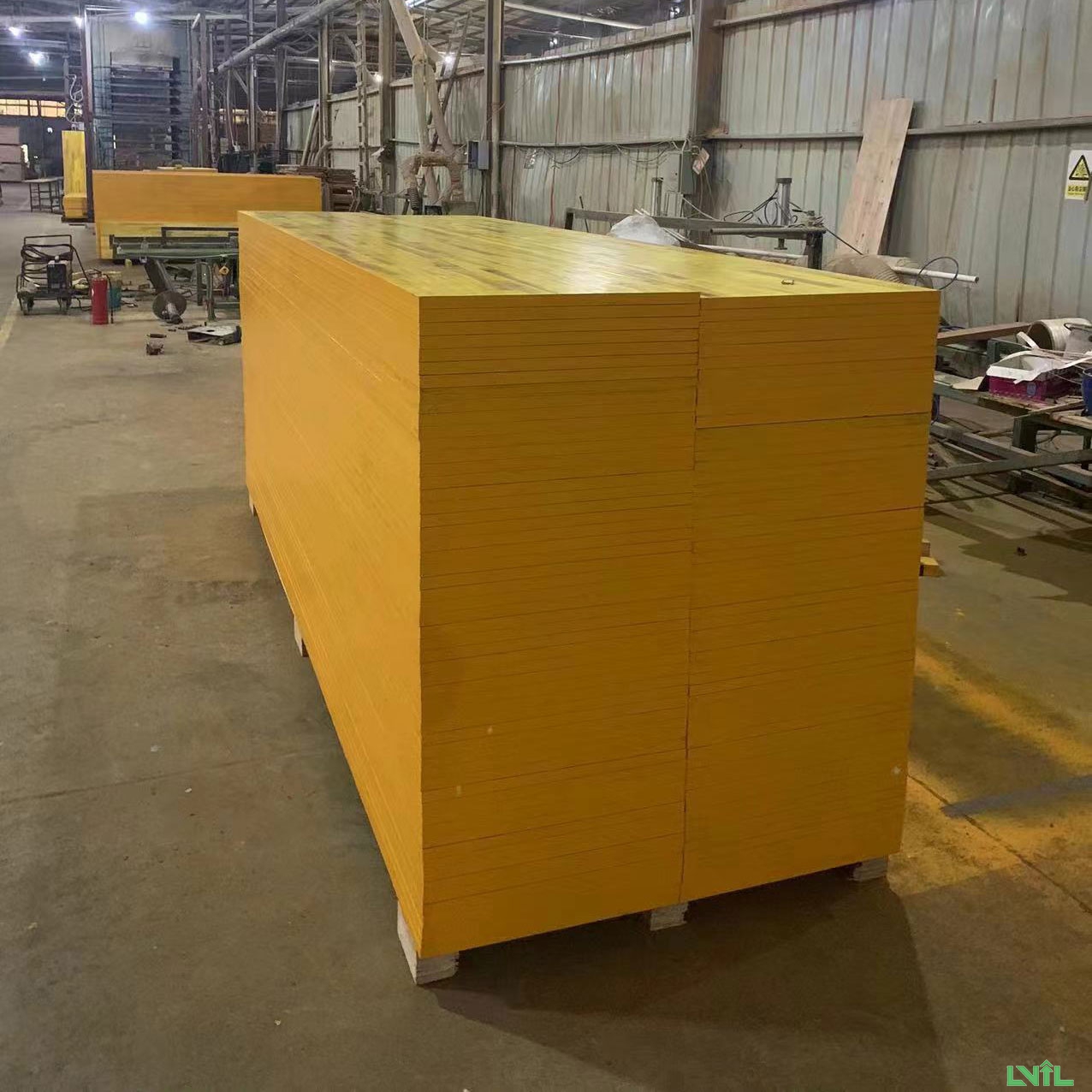

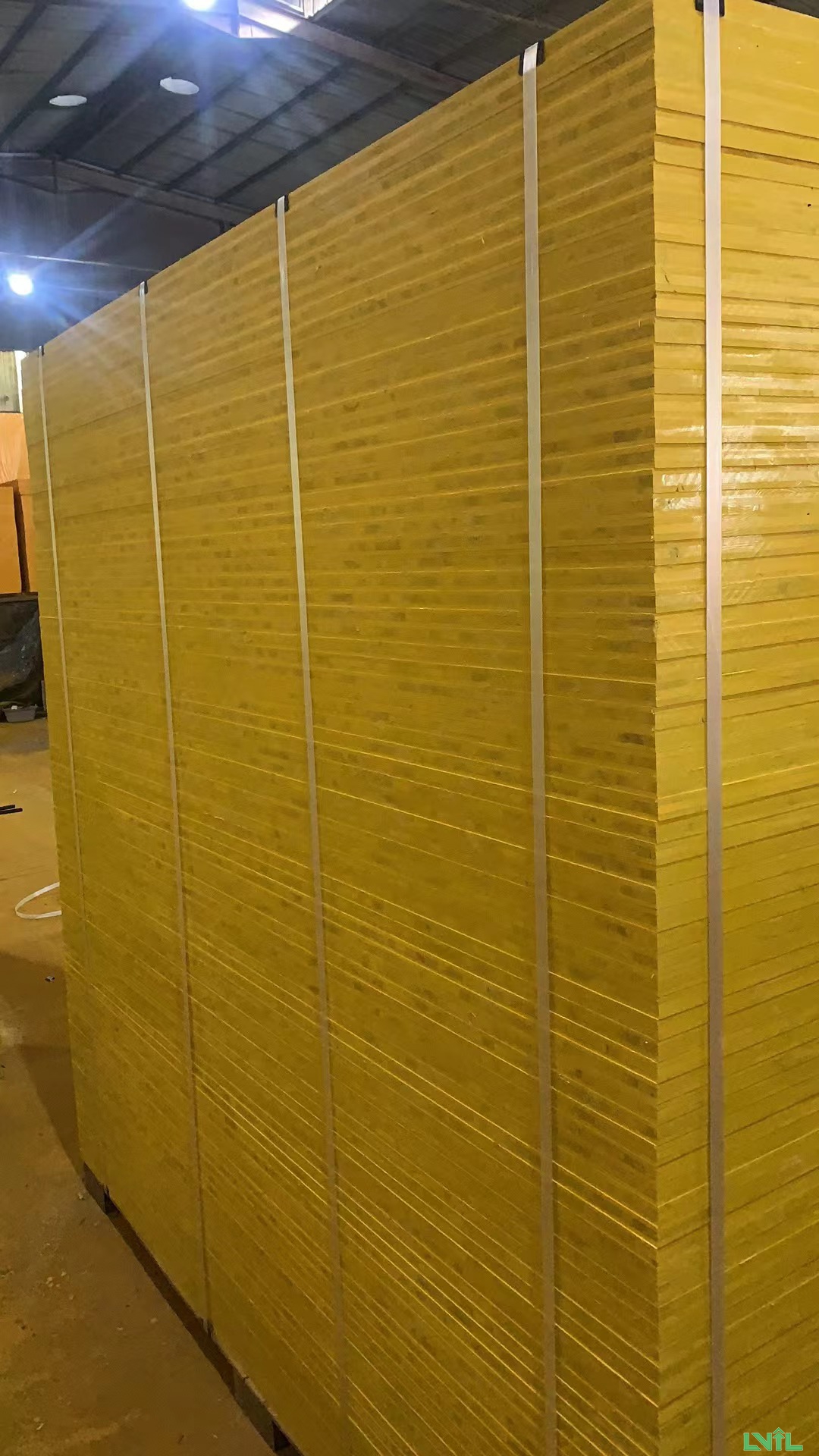

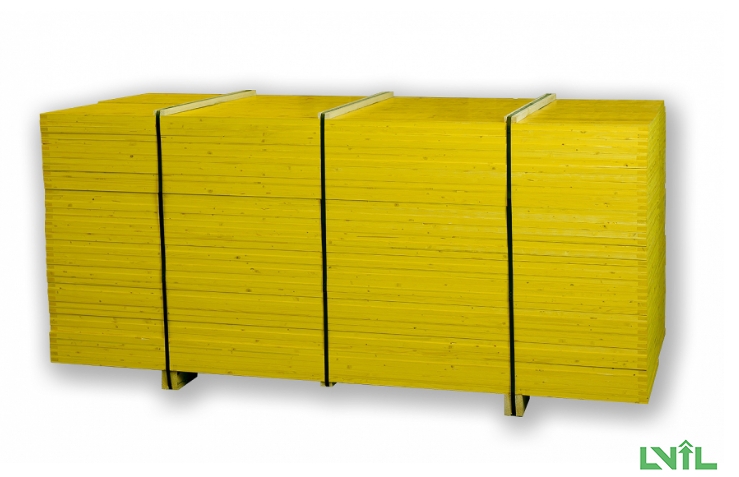

Packing & Delivery
21 mm: 108 pcs per package 27 mm: 84 pcs per package ;
