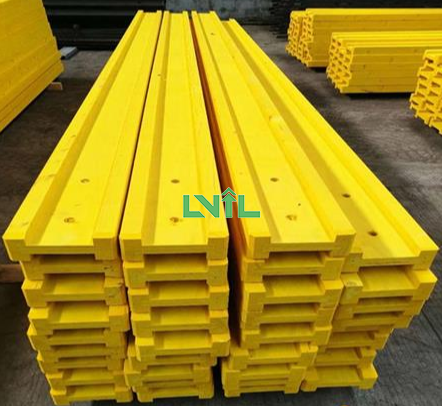

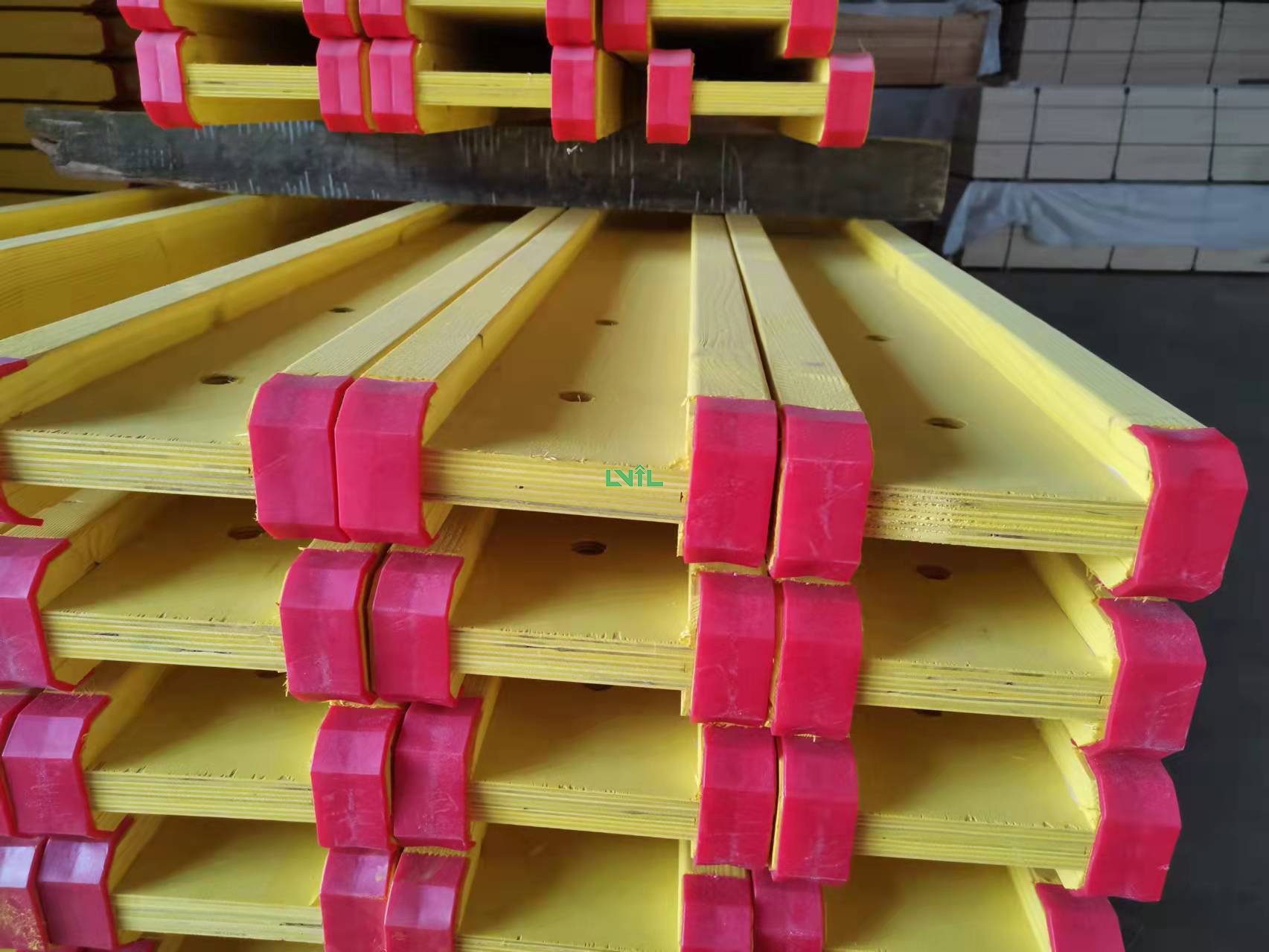

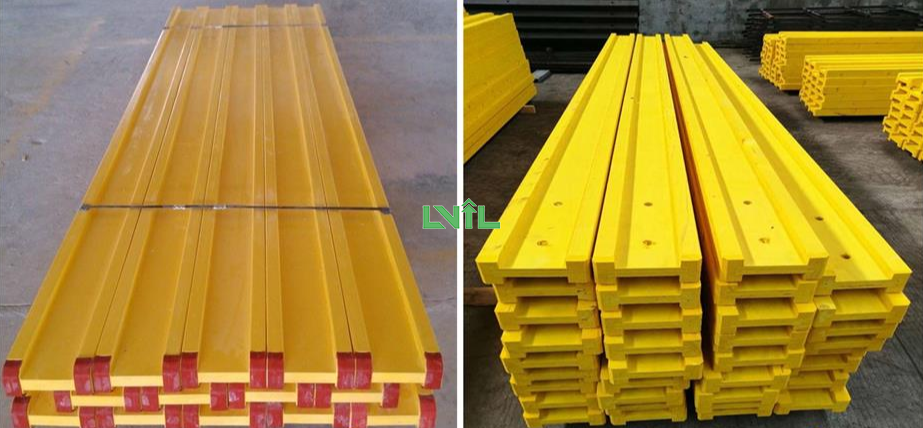

Formwork H20 Timber Beam, also called H20 Wood beam, I Joist, I beam, Wood H beam or Wood Girder, is widely used together with shuttering film faced plywood in formwork systems, construction systems parts, Falsework systems, timber structures and other bearing structures.

Shandong Unique International Trade Co.,Ltd

Features:

• Can meet different fresh concrete pressure by spacing the timbers and waling
• Can produce fair-faced concrete finishing
• Can be transferred into adjustable column formwork according to specially arranged solution

www.3plyplywood.com

Specification of our H20 prefabricated timber formwork beams:

Shandong Unique International Trade Co.,Ltd

Formwork H20 Timber Beam, also called H20 Wood beam, I Joist, I beam, Wood H beam or Wood Girder, is widely used together with shuttering film faced plywood in formwork systems, construction systems parts, Falsework systems, timber structures and other bearing structures. https://www.3plyplywood.com

Features:

www.3plyplywood.com

1. Can meet different fresh concrete pressure by spacing the timbers and waling Copyright © Shandong Unique International Trade Co.,Ltd All Rights Reserved.

2. Can produce fair-faced concrete finishing

3. Can be transferred into adjustable column formwork according to specially arranged solution Specification of our H20 prefabricated timber formwork beams: Product Name Formwork H20 Timber Beam, H20 Wood beam, I Joist, I beam, Wood H beam or Wood Girder Wood Species Pine or as request Beam height 200mm or as request Length 1.8m, 2.9m, 3.0m, 3.3m, 3.9m, 4.9m, 5.9m Flange solid wood Web plywood or LVL Web thickness 22mm / 27mm / 28mm / 30mm ( special thickness available on request) Chord height 40 mm or as request Chord width 80mm or as request Color Coating with painting (yellow color, waterproof, rot-proof, frozen-proof ) Payment Terms TT or LC at sight Certificates CE/FSC/ISO Delivery Time Within 12 days
