H 20 Prefabricated Formwork Beams are high performance formwork beams designed especially for applications as a load bearing element of Vertical shuttering applications like Wall , Column and Horizontal shuttering applications like Slabs, Beams , Domes etc., Unique

Unique

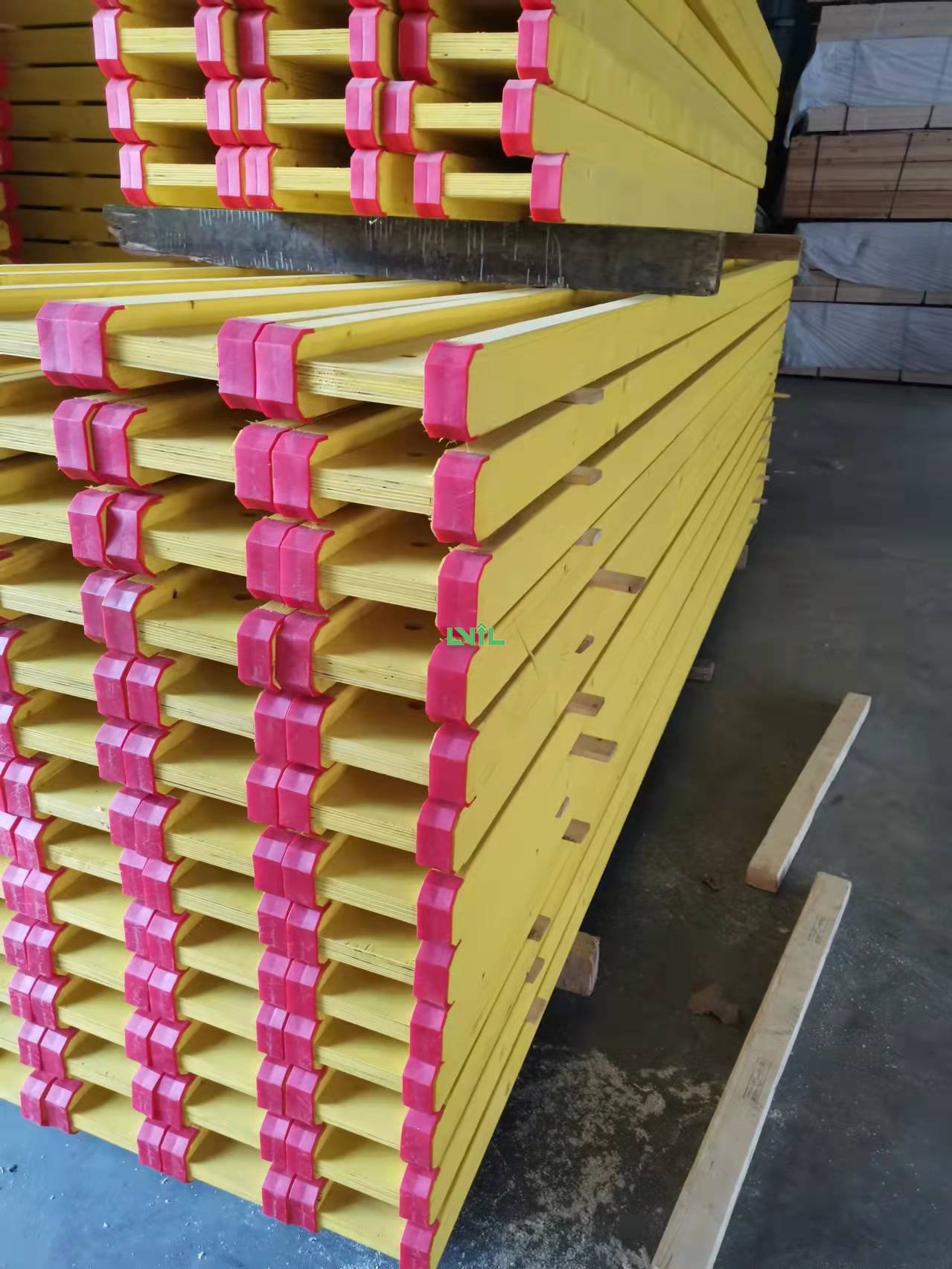

Both the ends of these high performance beams are secured with protective end caps.
WBO exterior Birch Plywood used in the fabrication of these beams as web is the highest value plywood which makes these beam resilient for high performance in critical conditions. Shandong Unique International Trade Co.,Ltd

Produced in Russian Federation using Russian formwork technologies, these beams are reliable, durable and cost effective option in the market today. Shandong Unique International Trade Co.,Ltd

Key Features Unique

• A reliable spike connection is glued in several layers, thereby eliminating splitting of the bar;
• The flange is made of oriented wood, premium grade, foreign producers, due to this, the probability of chips and cracks is reduced when driving nails, self-tapping screws;

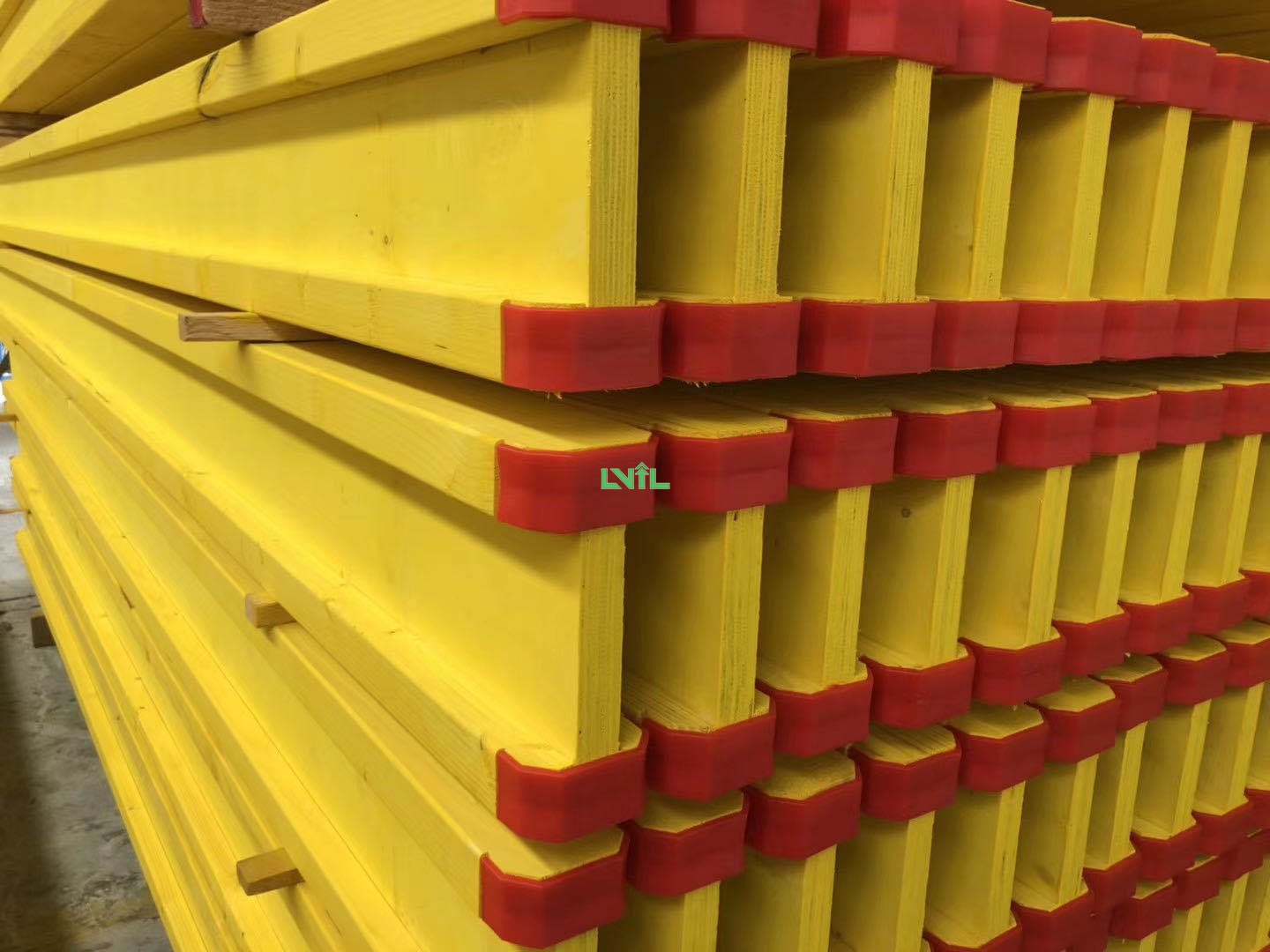

• To ensure durability, plastic tips are attached to the beams, which increase the strength of the ends of the beams and reduce the probability of their splitting;
• High-quality plywood, impregnated with a special resin, makes it reliable and stable in use;
• The use of a beam with its exceptionally large length bearing capacity significantly reduces the number of floor slabs, which reduces the number of parts for the assembly and dismantling of the formwork, resulting in reduced working time and higher profitability;
• The beam has a high load-bearing capacity and can be mounted in spans of long lengths without such defects as bending, shrinkage and cracks;
• Beam, section 40 x 80 mm gives stability and enhances the possibility of driving nails;

Unique

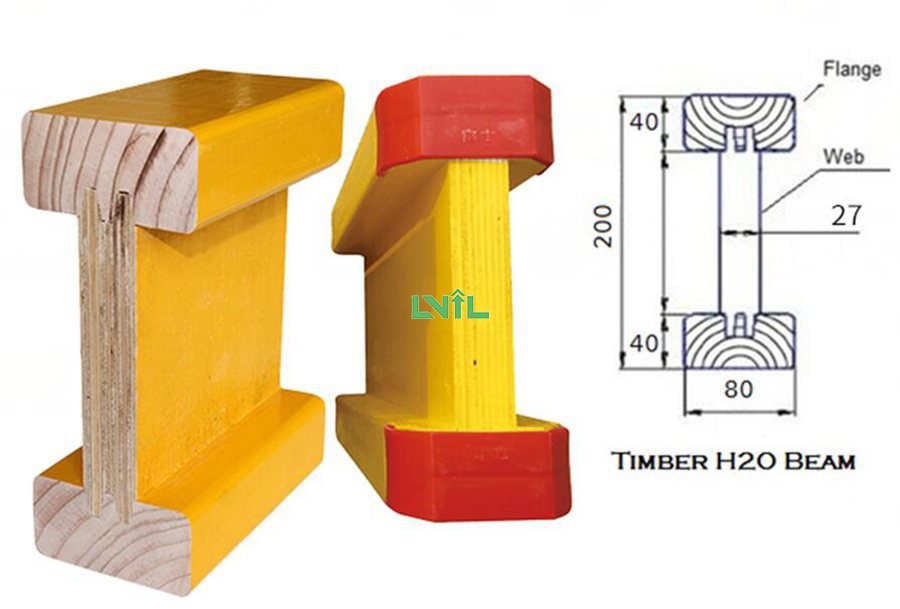

Technical specification Unique

• Standard Length - 2,5; 2.90; 3.00; 3.30; 3.60; 3.90; 4.50; 5.90 linear Meter
• Depth - 200 mm;
• Flange width - 80 mm;
• Thickness of the Flange - 40 mm;
• Web thickness from 27mm to 24mm.
• Weight - 5 kg /linear meter
• Allowable bending moment M = 5,0 kNm;
• Permissible Shear force Q = 11 kN
• Flexural Rigidity EI = 450 kN.m2

Recommended Applications: https://www.3plyplywood.com

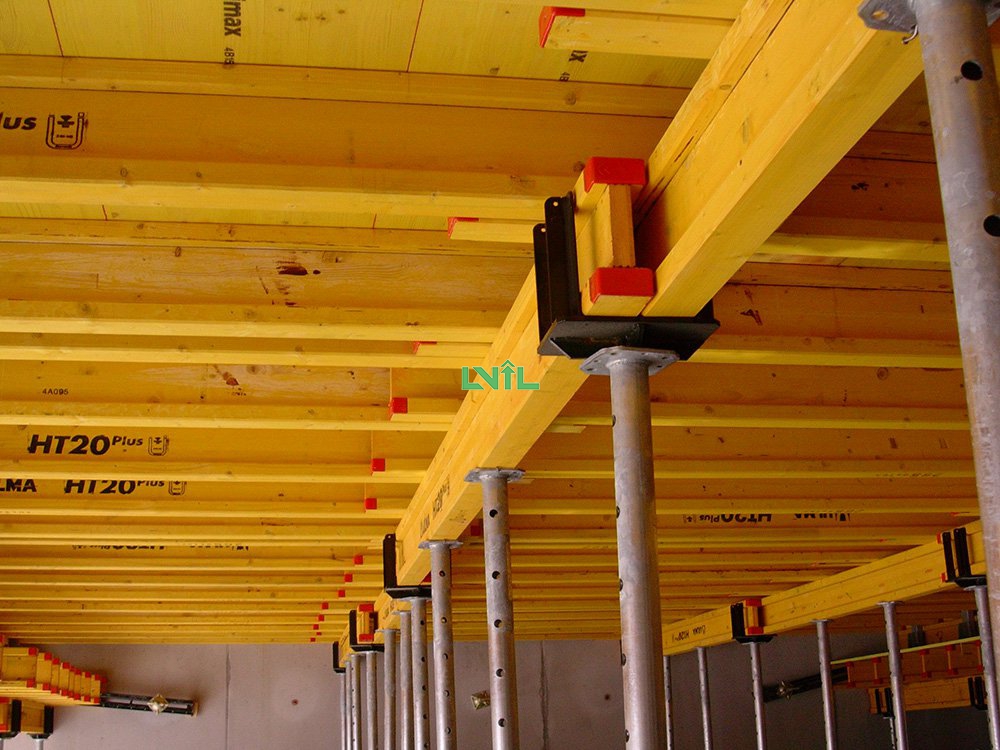

• Slab and beam shuttering of any types& shapes
• Column , Wall shuttering
• Shuttering of Special applications like Bridges, Domes etc.,

Properties & Conformities

Powered by Shandong Unique International Trade Co.,Ltd

• Waterproof, dimensionally stable, accurate & stable.
• Strong, robust and light in weight
• Meets EUTR standards,
• Meets and exceeds EN- 13377 : 2002,
• Meets and exceeds GOST: ТУ 5366-001-99187742-2007 с изм. №3,
• Meets & exceeds EN 385 : 1995 for structural lumber used in flange
• Meets and exceeds EN: 636-3 for Birch Plywood used in web
• Meets and exceeds EN 301 for synthetic resin adhesives used in bonding,
• All components have been pre-registered in accordance with the REACH standard on chemicals
