Wood H20 Beam for building formwork system Unique

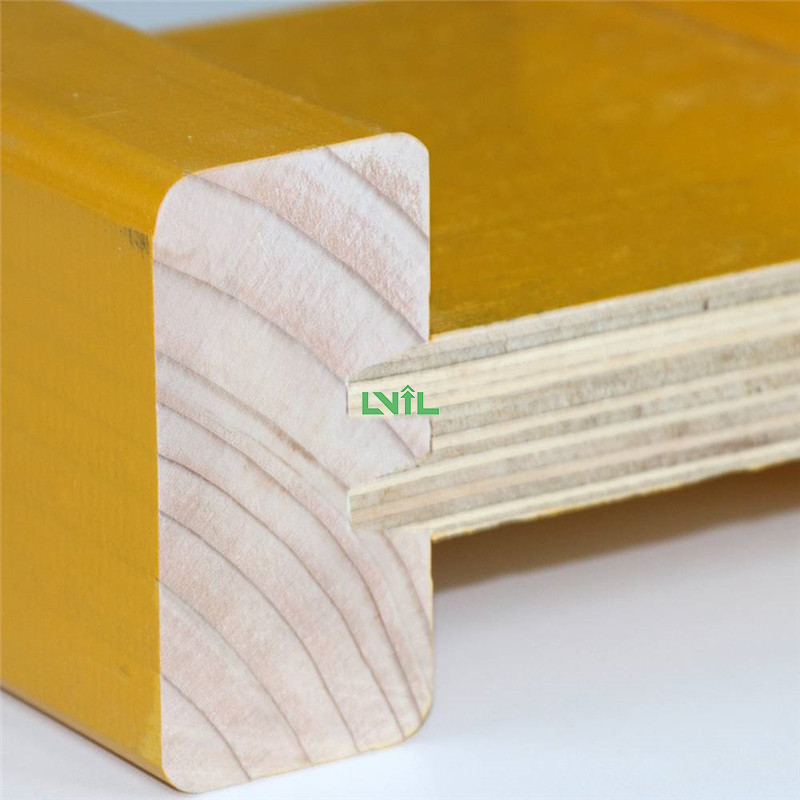

The wooden H beam is a lightweight structural component with solid sawn timber as the flange, multi-layer board as the web, and weather-resistant adhesive to form an H-shaped cross-section, and the surface is painted with anti-corrosion and waterproof paint. Copyright © Shandong Unique International Trade Co.,Ltd All Rights Reserved.

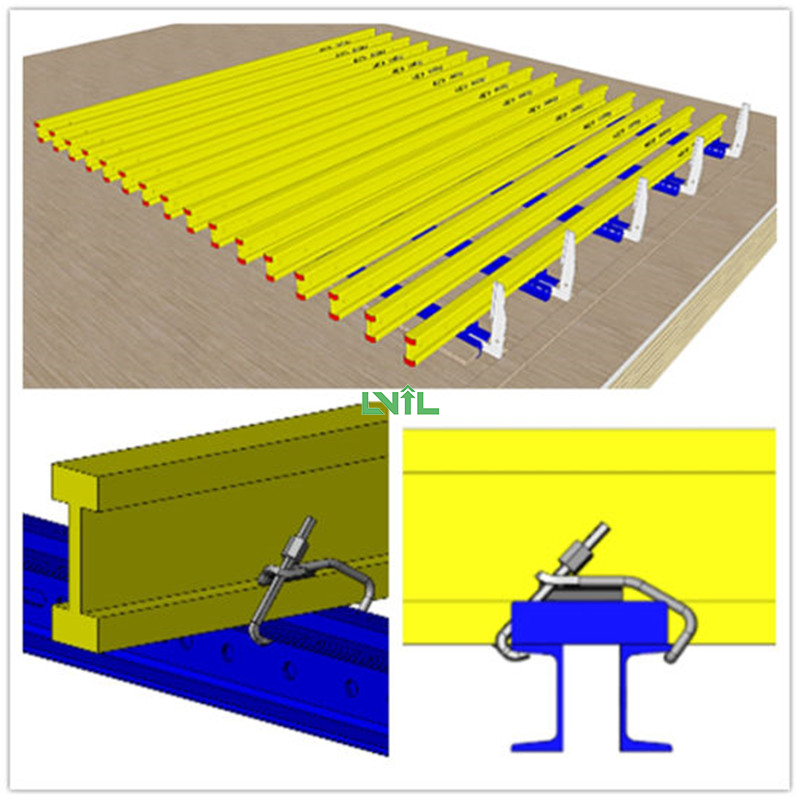

In the formwork project of cast-in-place reinforced concrete structures, it can be used with film faced plywood and vertical supports to form a horizontal support formwork system. With multi-layer slabs, diagonal braces and diagonal bolts, it can form a vertical formwork system.

Copyright © Shandong Unique International Trade Co.,Ltd All Rights Reserved.

The most prominent features of wooded H beams are large rigidity, light weight, strong bearing capacity, which can greatly reduce the number of supports, expand the spacing and construction space; convenient disassembly, flexible use, easy to assemble and disassemble on site; low cost, durable and repeatable the utilization rate is high. Copyright © Shandong Unique International Trade Co.,Ltd All Rights Reserved.

A beam is placed horizontally on the two supports. When the beam receives downward pressure perpendicular to the axis, the beam will bend. Compression deformation occurs at the upper part of the beam, that is, compressive stress occurs, and the closer it is to the upper edge, the more serious the compression; the tension deformation occurs at the lower part of the beam, that is, tensile stress occurs, and the closer to the lower edge, the more serious the tension. https://www.3plyplywood.com

The middle layer is neither stretched nor compressed, so there is no stress, and this layer is usually called the neutral layer. Since the neutral layer has little contribution to bending resistance, I-beams are often used in engineering applications instead of square beams, and hollow tubes are used instead of solid columns.

Shandong Unique International Trade Co.,Ltd

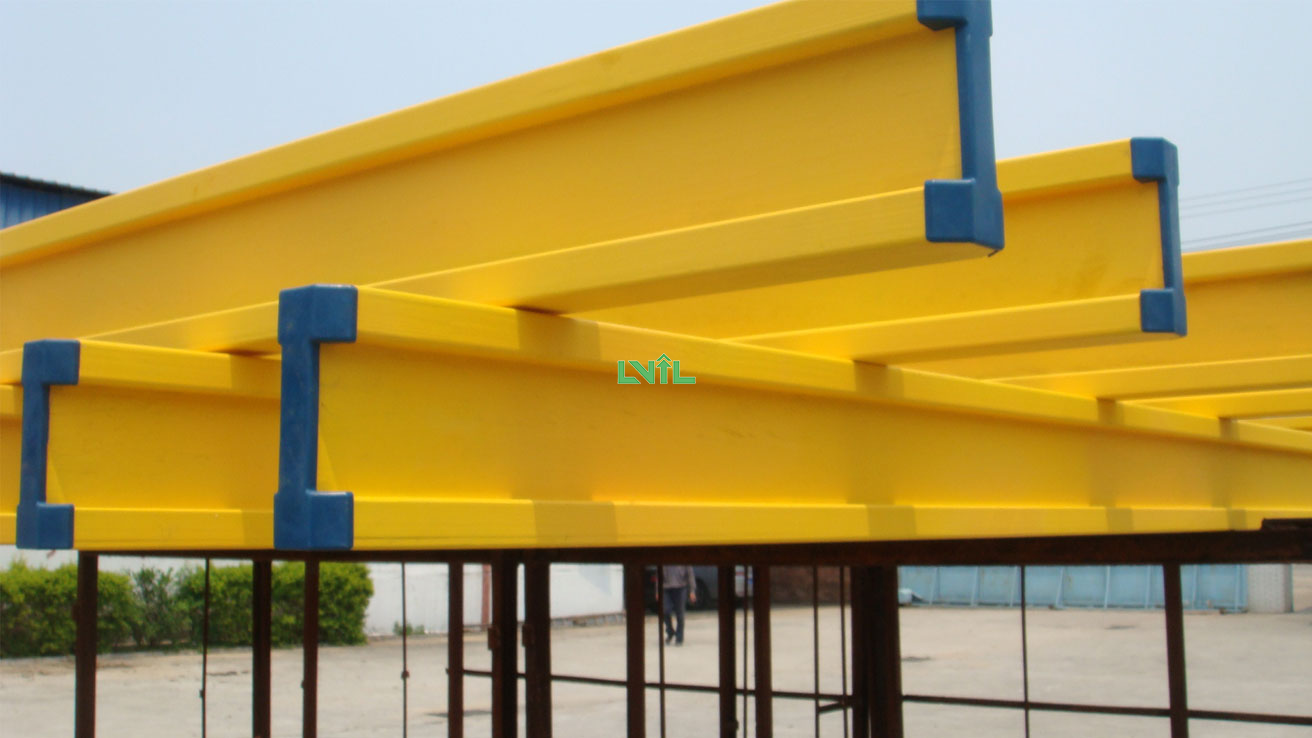

The I-beam is an important component in the internationally-used building formwork system. It has the Specifications of light weight, high strength, good linearity, resistance to deformation, surface resistance to water, acid and alkali, etc., and can be used throughout the year and cost amortization. Inexpensive, it can be used with domestic and foreign professional template system products. Powered by Shandong Unique International Trade Co.,Ltd
It can be widely used in horizontal formwork system, vertical formwork system (wall formwork, column formwork, hydraulic climbing formwork formwork, etc.), variable arc formwork formwork system and heterogeneous formwork formwork system.
The wood beam straight wall formwork is a removable formwork, which is easy to assemble and can be assembled into various sizes to a certain extent and extent.
The template is flexible in application. The rigidity of the formwork is very convenient, and the height of the formwork can be poured more than ten meters at a time. Due to the light weight of the formwork material used, the whole formwork is much lighter than the steel formwork when assembled.
The system product components have a high degree of standardization, good reusability, and meet environmental protection requirements

https://www.3plyplywood.com

Slab Beam Technical Data Powered by Shandong Unique International Trade Co.,Ltd
